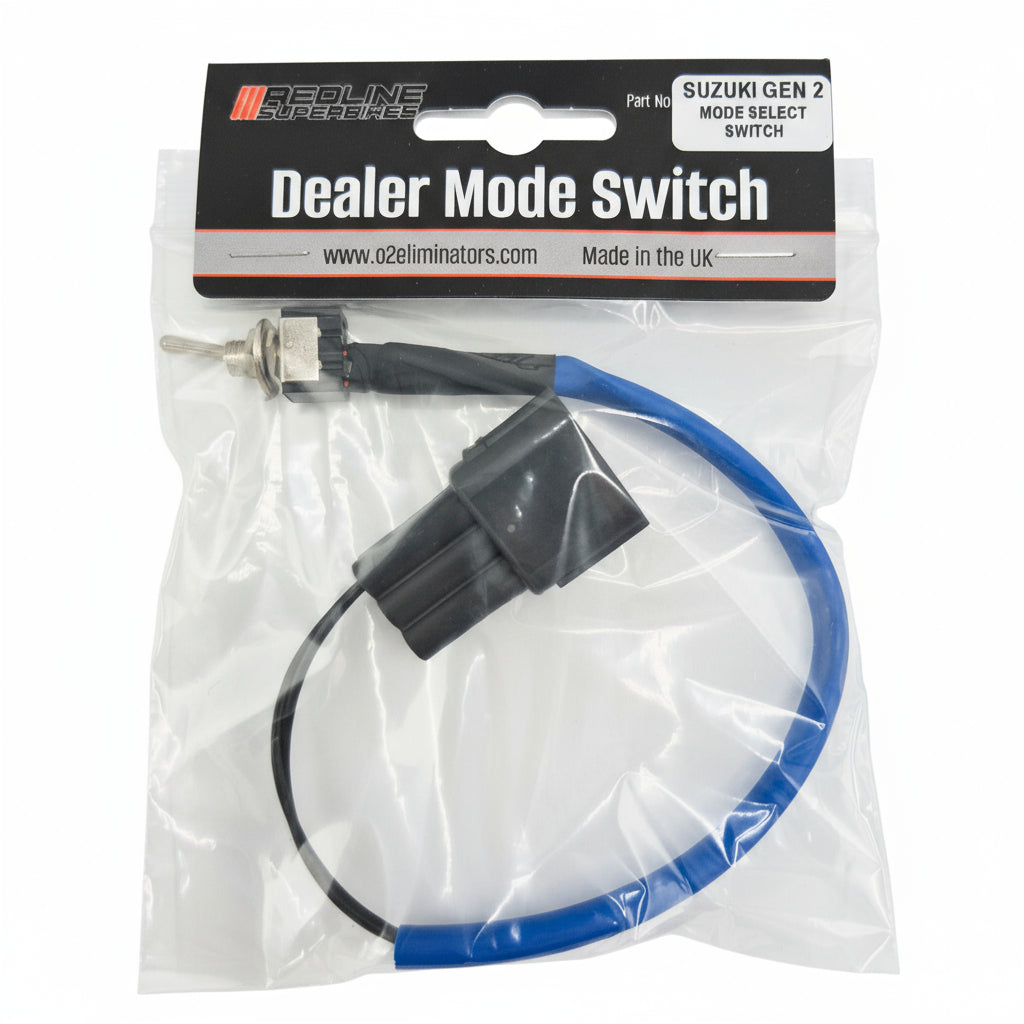

Suzuki Dealer Mode Switch — 6 Pin Gen 2 (2004–2019) | OEM Ref: 09930-82720
Suzuki Dealer Mode Switch — 6 Pin Gen 2 (2004–2019) | OEM Ref: 09930-82720
SKU:DMS6
Couldn't load pickup availability

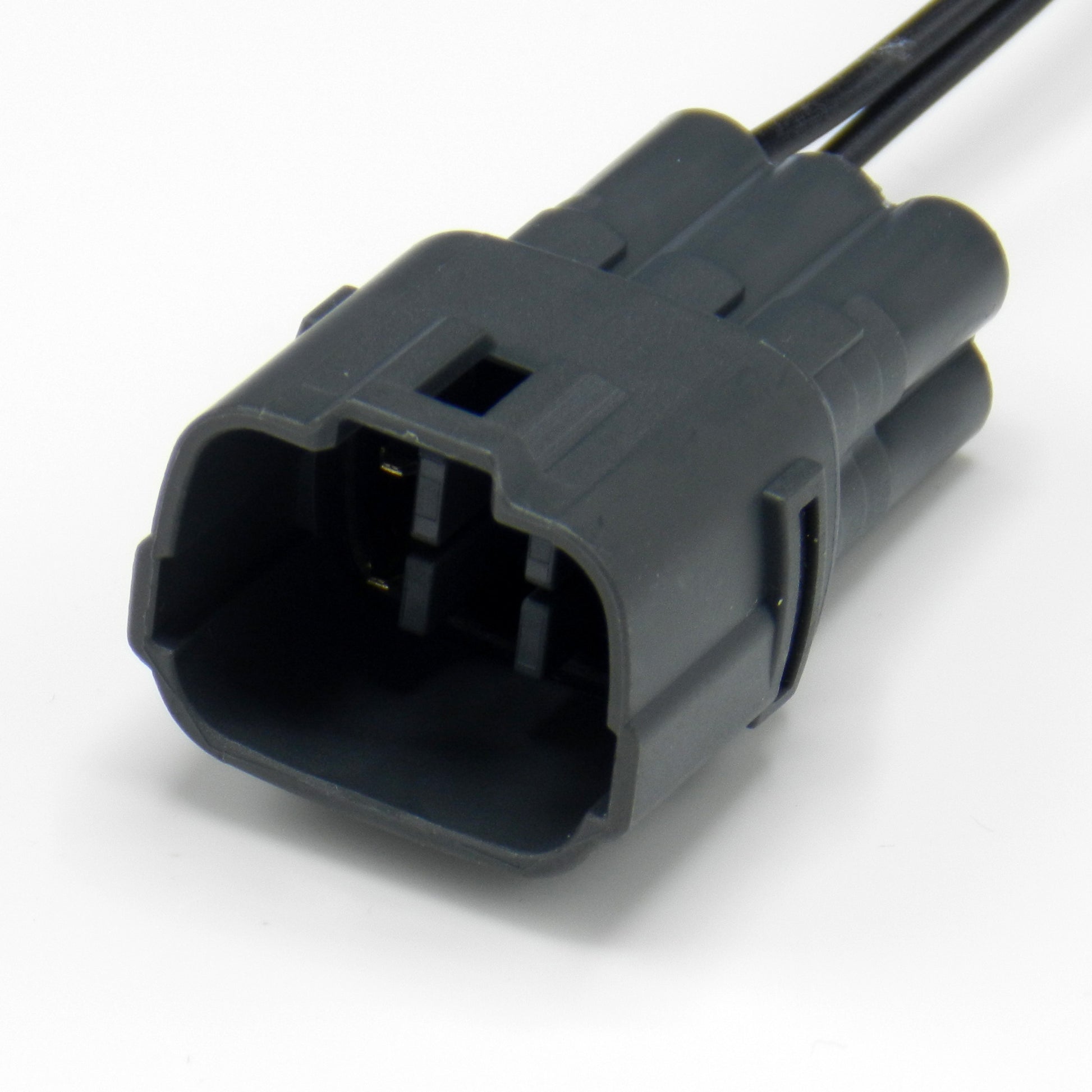

Pattern equivalent of Suzuki OEM part number 09930-82720. Plugs directly into the white six-pin diagnostic connector found under the seat on Suzuki fuel-injected models from 2004 to 2019.
What does dealer mode do?
Activating dealer mode switches the ECU into a diagnostic state that displays fault codes and sensor data directly on the instrument cluster LCD. With this tool installed you can:
- Read current and stored FI error codes from the ECU
- Adjust and verify the Throttle Position Sensor (TPS)
- Troubleshoot fuel injection and sensor faults without a dealer visit
- Reset ISC (Idle Speed Control) valve on applicable models
- Monitor coolant temperature, intake air temperature and atmospheric pressure sensor outputs
Why use this instead of a paperclip?

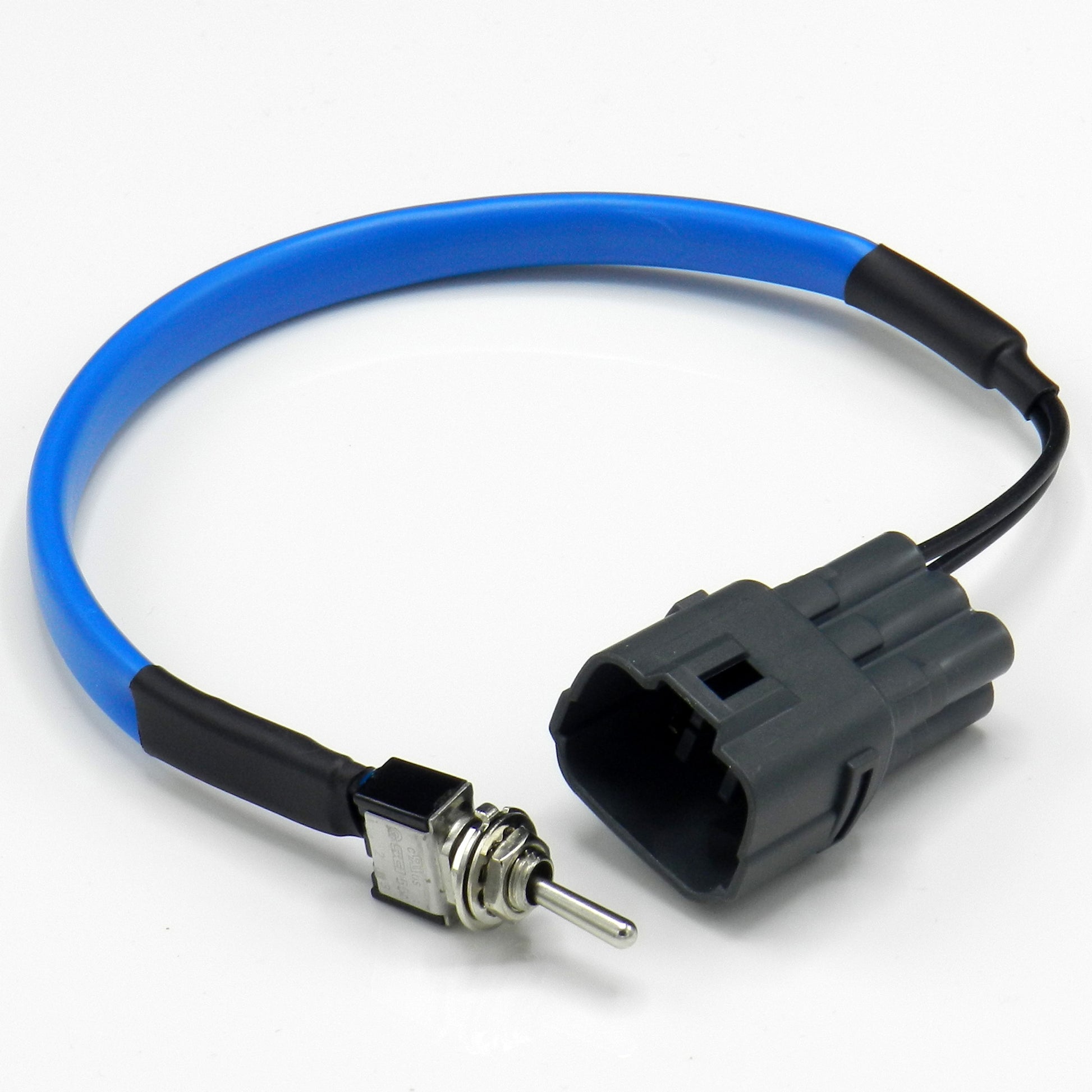

The diagnostic connector is a precision component. Repeated use with improvised tools risks bending pins or causing accidental short circuits — a common mistake that blows the 10A ignition fuse. This tool seats cleanly, stays in place, and uses a proper on/off switch so you control exactly when dealer mode is active. It can be left permanently installed under the seat for instant roadside diagnostics.
Which generation do I need?
| Generation | Connector | Year range | OEM part |
|---|---|---|---|
| Gen 1 | 4 pin — white | Pre-2003 | 09930-82710 |
| Gen 2 — this listing | 6 pin — white | 2004–2019 | 09930-82720 |
| Gen 3 | 6 pin — red | 2020 onwards | 09930-83130 |
To confirm your generation: locate the diagnostic plug under the passenger seat. White 4-pin = Gen 1. White 6-pin = Gen 2 (this tool). Red 6-pin = Gen 3.
Compatible models — Gen 2 white 6-pin
| Model | Years |
|---|---|
| GSX-R600 | 2004 onwards |
| GSX-R750 | 2004 onwards |
| GSX-R1000 | 2003 onwards |
| GSX-S750 / GSX-S1000 | All FI years |
| SV650 | 2003 onwards |
| DL650 V-Strom | 2004 onwards |
| DL1000 V-Strom | 2004–2019 |
| Bandit 650 / 1250 | 2007 onwards |
| Hayabusa GSX1300R | 2008–2020 |
| Burgman 400 / 650 | 2003 onwards |
| Boulevard / Intruder (FI models) | Selected years |
| LT-R450 QuadRacer | Selected years |
Installation
Difficulty: Easy. Estimated time: 2 minutes. No wiring, no tools required. Plug directly into the white six-pin diagnostic port under the seat. Refer to your service manual for fault code descriptions and TPS adjustment procedure.
UK dispatch & returns
Dispatched same working day from our UK warehouse. Free UK delivery from £40 (Royal Mail Tracked 24, 1–2 business days). Free Special Delivery by 1pm from £50. 30-day no-quibble returns.
Sold by Redline Superbikes via O2Eliminators.com — established UK supplier of motorcycle eliminator parts.
