Suzuki Dealer Mode Switch — 6 Pin Gen 3 (2020+) Service Reset | OEM Ref: 09930-83130
Suzuki Dealer Mode Switch — 6 Pin Gen 3 (2020+) Service Reset | OEM Ref: 09930-83130
SKU:DMSGEN3
Couldn't load pickup availability

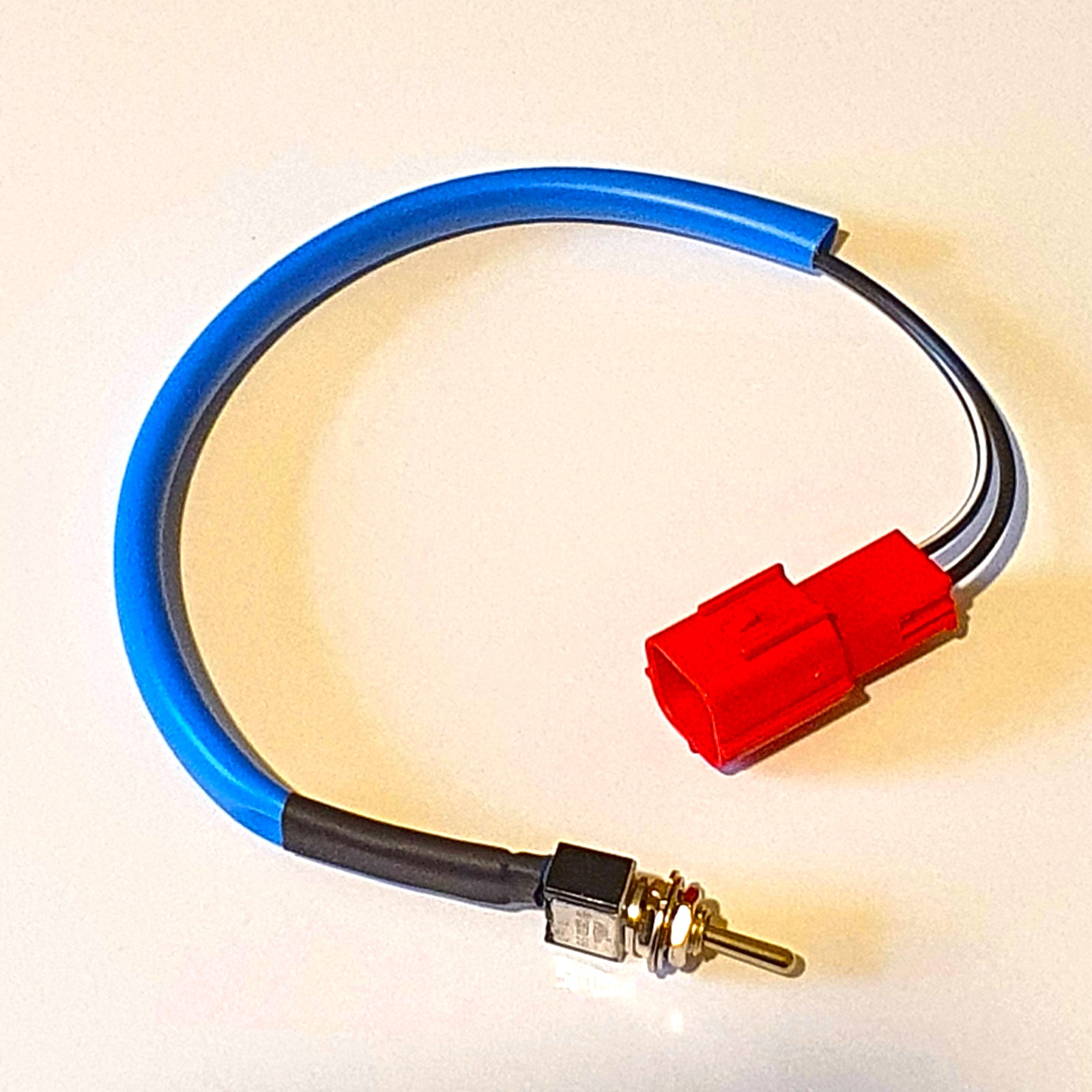

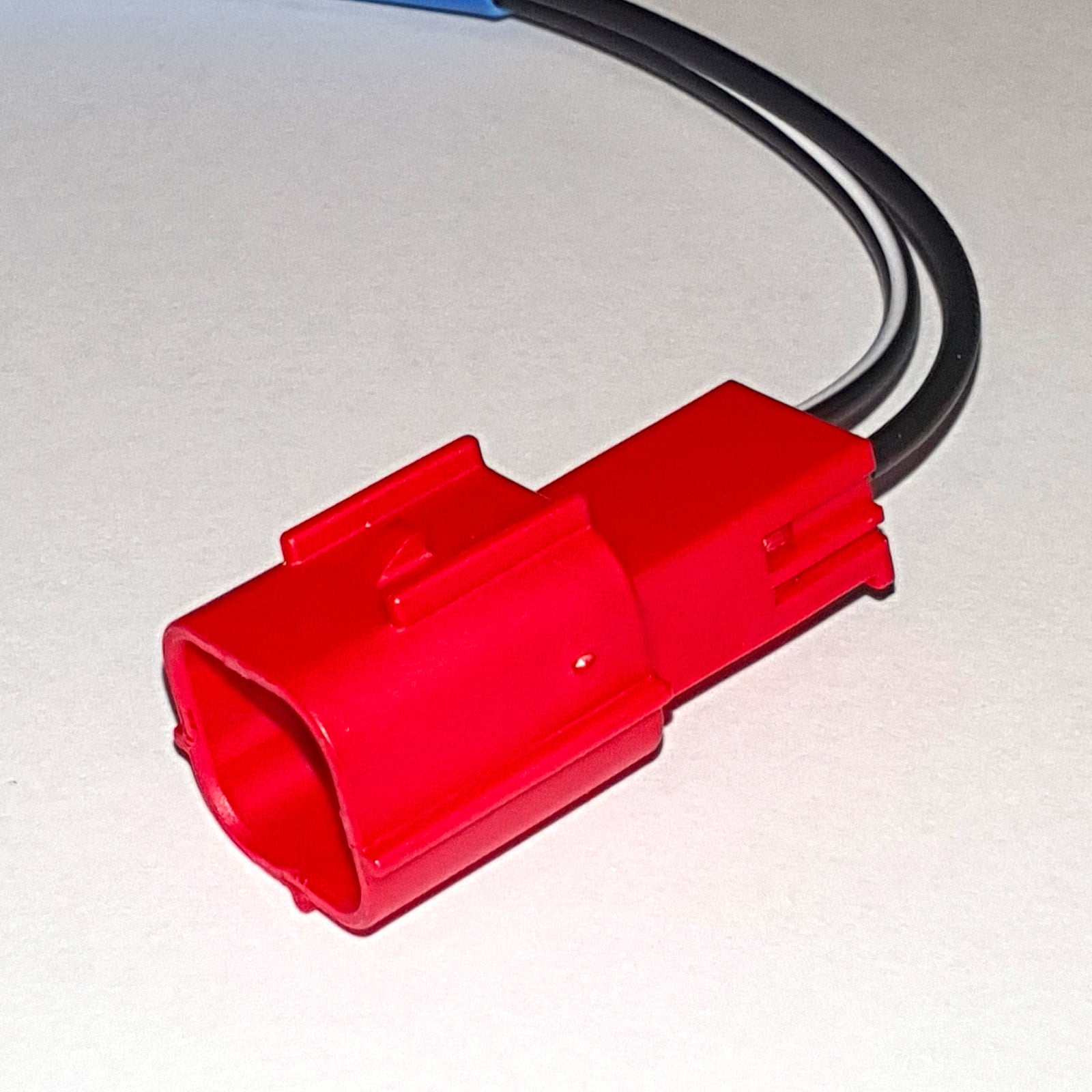

Pattern equivalent of Suzuki OEM part number 09930-83130. Plugs directly into the red six-pin diagnostic connector found on Suzuki fuel-injected models from 2020 onwards. This is the Gen 3 connector — physically different from the earlier white six-pin plug used on 2004–2019 models.
What does dealer mode do?
The Gen 3 dealer mode switch provides full ECU diagnostic access and — crucially — is the correct tool for resetting the service interval reminder light on 2020+ models. Without this tool the only way to reset the service light is a dealer visit. With this tool installed you can:
- Reset the service interval reminder light yourself after every service
- Read current and stored FI error codes from the ECU
- Adjust and verify the Throttle Position Sensor (TPS)
- Access the service menu to clear fault codes
- Troubleshoot fuel injection and sensor faults without a dealer visit
Service interval reset — step by step
On 2020+ models the wrench icon / service reminder cannot be cleared from the instrument cluster alone. Using this tool:
- Plug the switch into the red diagnostic connector under the passenger seat
- Turn the ignition on
- Activate dealer mode using the switch
- Navigate to the service interval reset function in the service menu
- Reset and turn off — done
Note: full reset procedure is detailed in your model's service manual. Inserting a paper clip into the wrong pins is a common mistake that blows the 10A ignition fuse — use the correct tool.
Which generation do I need?
| Generation | Connector | Year range | OEM part |
|---|---|---|---|
| Gen 1 | 4 pin — white | Pre-2003 | 09930-82710 |
| Gen 2 | 6 pin — white | 2004–2019 | 09930-82720 |
| Gen 3 — this listing | 6 pin — red | 2020 onwards | 09930-83130 |
To confirm your generation: locate the diagnostic plug under the passenger seat. If it is red it is Gen 3 (this tool). If it is white with 6 pins see our Gen 2 listing.
Compatible models — Gen 3 red 6-pin
| Model | Years |
|---|---|
| Hayabusa GSX1300R (Gen 3) | 2021 onwards |
| GSX-R1000 / R1000R | 2020 onwards |
| GSX-S1000 / GT / GX | 2021 onwards |
| GSX-S750 | 2020 onwards |
| DL1050 V-Strom XT / A | 2020 onwards |
| DL650 V-Strom | 2020 onwards |
| SV650 | 2020 onwards (verify connector colour) |
| Katana GSX-S1000 | 2019 onwards |
Always verify by checking the connector colour under your seat before ordering. European and North American market models use the same pin configuration on Gen 3.
Installation
Difficulty: Easy. Estimated time: 2 minutes. No wiring, no tools required. Plug directly into the red six-pin diagnostic port under the passenger seat. Can be left installed permanently. Refer to your service manual for the full service reset and fault code procedures.
